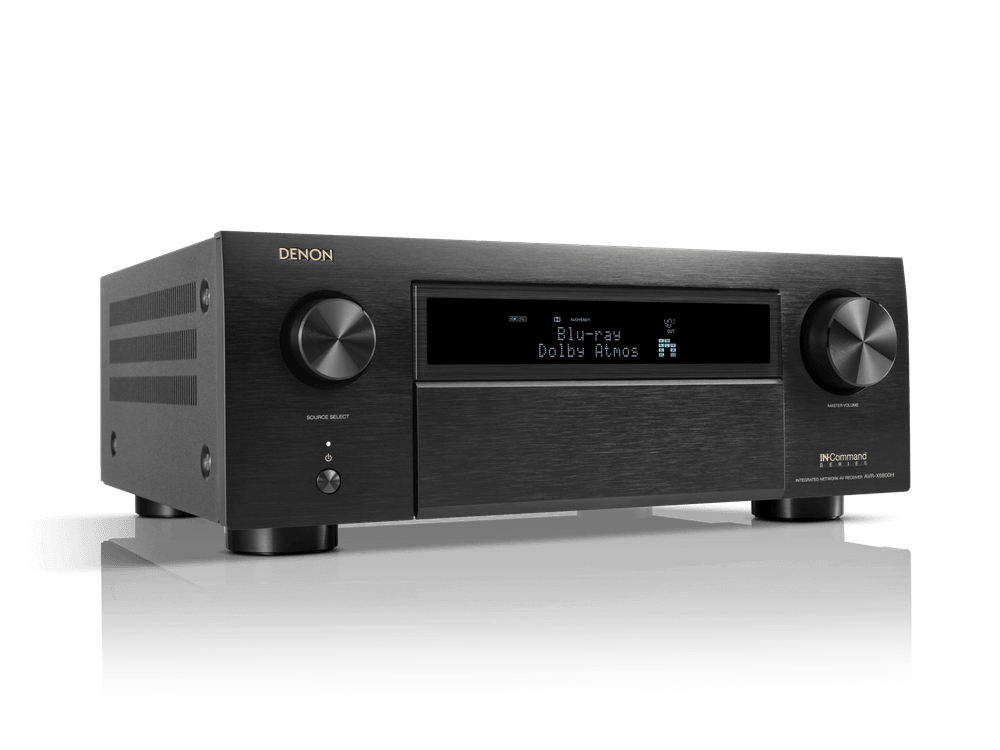

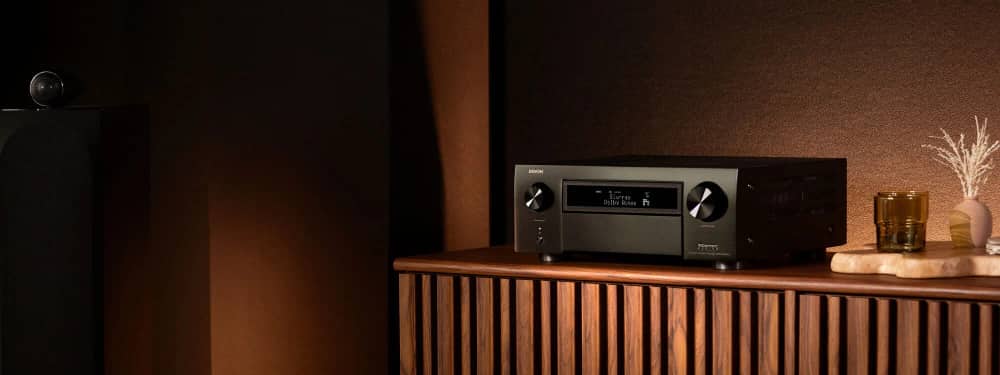

AVR-X6800H
Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X Pro, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS, wirelessly stream your favorite music.
MPN: 300794-01-00-101
Request a quoteTalk to the team that installs it in Greater Houston, TX. System design, screen matching and calibration included in the quote.
How we specify in Greater Houston
Residential and commercial work are both in scope here. Boardrooms need a signal path that survives a laptop swap, churches need throw distance that clears the platform, and homes want the rack out of sight. We design the system first, then choose the hardware that matches it. For the AVR-X6800H specifically, we confirm the fit against your room in Greater Houston, TX before quoting the install.
Service area: Greater Houston, Downtown Houston, Greenway Plaza, The Galleria, Energy Corridor, Sugar Land, Pearland, Katy, The Woodlands.
Specifications
Multichannel Surround
| DTS HD Master / DTS:X / DTS:X Pro | Yes / Yes / Yes |
|---|---|
| DTS Neo:6 / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music | Yes / Yes / Yes / Yes |
| Dolby ProLogic Il / Dolby Surround | No / Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes / Yes |
| Multichannel Stereo | Yes |
| Max. number of processing (preamp) channels | 13.4 |
Sound Enhancements
| Mono Block Power Amp Construction | Yes |
|---|---|
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Dirac Live upgradability | Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
|---|---|
| HEOS Wireless Multi-Room Technology | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes (With volume control) |
| Alexa / Google Voice Assistant / Apple HomePod | Yes / Yes / Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify Connect | Yes (connect) |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services | Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon AVR Remote |
| Compatible with Remote APP for Tablets | Android / iOS / Amazon Kindle |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back, Front | 7 / No |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2 / 1 |
| Video conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue | Yes / Yes / Yes / Yes / No |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| ALLM (Auto Low Latency Mode) Pass-Through for Gaming | Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
| 3D Signal Pass-Through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI Pass-Though in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio capability | Yes |
| Audio Return Channel | ARC, eARC |
| Auto LipSync | Yes |
Multi-room / CI
| Multi-Room Zones | 3 |
|---|---|
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Pre-Out | Yes / Yes |
| Zone HDMI output from HDMI source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger output | 3 |
| HDMI Diagnostics | Yes |
Others
| Auto speaker setup by microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
|---|---|
| Front Display | 2 Line FLD |
| Graphic User Interface - GUI | Modern HD GUI |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes / No |
| Firmware Update by Network / USB | Yes / Yes |
| Variable cross over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
Inputs Outputs
| Composite In / Out | 2 / No |
|---|---|
| Component In / Out | 1 / No |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| Analog In, Out | 6 / No |
| Phono (MM) In | Yes |
| Digital in: Optical/Coaxial | 2 / 2 |
| Multi-Room Out: Analog/Digital | 2 / No |
| Multichannel Pre-out | Yes (13.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw / Regular Screw | Yes / No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Bi-amp drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| USB Power Supply on Rear Panel | Yes |
| AM/FM Tuner | Yes |
Specifications
| Number of Power Amps | 11 |
|---|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
General
| Metal Front Panel | Yes |
|---|---|
| System Remote Control | RC-1256 |
| Pre-programmed / Learnable / LCD Display | Yes / No / No |
| Power Consumption in W | 750 |
| Power Consumption No-Sound (ECO On / Off) in W | 65W / 110W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) [ w/o Antenna :(W x D x H) in mm] | 17.1x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3) ( 17.1 x 14.9 x 6.6) |
| Carton Dimensions (Packaging) (W x D x H) in Inches) | 20.9 x 18.3 x 11.9 (in) |
| Weight in LBS | 34.4 |
| Weight in LBS (Packaging) | 40.1 |
| Power Supply | AC 120 V, 60 Hz |
| Speaker Impedance | 4-16 ohm/ohms |
| Input Sensitivity | 200 mV |
| Frequency Response | 10 Hz-100 kHz - +1, -3dB (Direct mode) |
| S/N Ratio | 102dB (IHF-A weighted, Direct mode) |
| Tuning Frequency Range | 87.5-107.9 MHz |
| Tuning Frequency Range | 520 kHz-1710 kHz |
| What's in the Box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
| UPC Code | 747192140359 |
Features
- 11.4 channels
- 140W per channel
- 8K Ultra HD
- 3D Audio
- Powered by HEOS
- Seven HDMI Inputs
